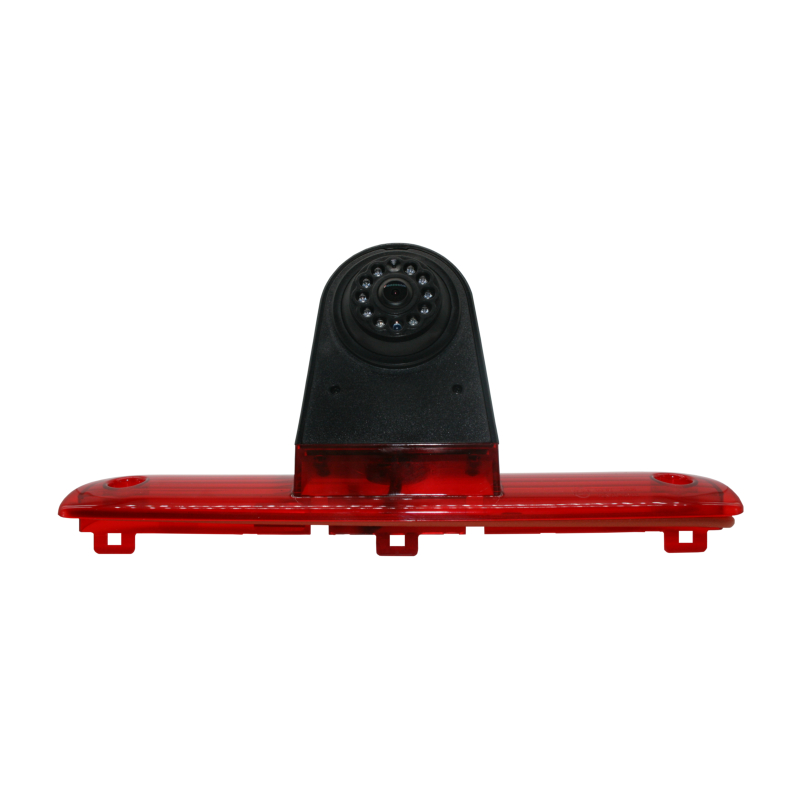

Iveco Daily backup camera Mini-DIN 4-pin connector

Camera Specifications

• Sensor: Sony

• Effective Pixels: 510 × 582

• Resolution: 420 TV lines

• Lens angle: 110°

• Horizontal lens: 120°

• Minimum illumination: 0.8 lux

Synchronization and signal

• Horizontal synchronization frequency: 15.625 kHz

• Vertical Sync: 50 Hz

• Synchronization system: internal

• Video Output: 1.0 Vp-p, 75 Ohm

• Signal-to-Noise Ratio (S/N): 48 dB

Automatic Functions

• AGC (Automatic Gain Control): Auto

• BLC (Backlight Compensation): Auto

Power supply and consumption

• Power supply: DC 12 V

• Power consumption: 300 mA

Temperature ranges

• Operating temperature: -20 °C to +60 °C

• Storage temperature: -30 °C to +60 °C
